LangBox-Ara 3.3
The Bilingual English/Arabic Environment for UNIX

Technical Product Description




    Arabic, as a calligraphic language, presents major processing problems.

    An Arabic character may take one, two, or sometimes four different shapes, yet it is represented by one code. The shape of the character is determined depending on its position in the word. This is but one problem called "Character Shaping".

    Another is the direction of writing. Arabic text is written from right to left. This conflicts with English, which is written in the opposite direction. When mixing text languages, characters are added in one language and pushed in the other. This is called "Bi-Directionality".

    Some users speak only Arabic. They will not accept a cursor positioned at the leftmost position of the screen. They want to have an option allowing them to start at the rightmost position of the line, i.e. in brief, a mirror image of the screen. The implication is that, in this mode, English characters are pushed from right to left. This is called "Screen Mirroring".

    Yet one more complication: vocalization (or diacritics). These characters, like their counterparts in English, the vowels, are a linguistic necessity, yet, in Arabic, they appear on top or below their respective consonants.

    These linguistic complications - and more - make Arabic a difficult language to handle.

    Another aspect of the problem is that standard UNIX Operating system support of Internationalization (local) supplies only support for European Languages generally based on the ISO 8859-1 character codeset. This National Language Support (NLS or XLOCALE) allows keyboard mapping, handling of collating sequences and character types, date and time format. It could also include, in the near future, a specific extension for the Japanese language, but cannot handle Arabic characters, and, in general "right-to-left" writing direction languages..

    LangBox International is specialized in the design and development of bilingual and multilingual Operating Systems. It has implemented bilingual capabilities on a large number of machines operating under UNIX, XENIX, AIX, SUN/OS, ISC, SINIX, DG/UX, EP/IX, CLIX,.SOLARIS, IRIX, OSF/1, etc.

    In response to a clear market demand in the Arab countries, LangBox International has developed a Bilingual System supporting both the Arabic and English languages. LANGBOX for Arabic (named LANGBOX-ARA) has thus been conceived with the following principles in mind:

  • Providing a global solution to Arabic and English simultaneously.
  • Transparency of applications.
  • Total transparency to storage and display of data in national languages.
  • Total UNIX application transparency for usage in Arabic.
  • Ease of internationalization of applications.
  • Conformity with national and international standards.
  • LANGBOX-ARA is a bilingual Operating System and a bilingual development environment. LANGBOX-ARA is based on the ISO 8859-6 codeset.

    The languages supported are:

  • English
  • Arabic
  • The LANGBOX-ARA Working Environment

    The LANGBOX-ARA system is built around TTY driver of the UNIX System V. When loaded onto the UNIX system, LANGBOX-ARA provides the user with a full bilingual environment in Operating System interface, systems development and character based applications run time operations.

    The LANGBOX-ARA system supports any application running on TTY terminal screen, from the dump terminal (such as VT100 RS232 connected terminal) to any PTY connection through the Network (Xterm emulation or PC based product running telnet sessions).

    To conform to the UNIX operating system, LANGBOX-ARA is also designed to run in a multi-user and multitasking environment and to co-reside with the standard UNIX facilities. Having LANGBOX-ARA added to a UNIX system does not prohibit its users from operating in a pure UNIX environment.

    While operating under the LANGBOX-ARA bilingual environment, users can select and set their default language, English or Arabic. Users can login to the system in the language of their choice and communicate with the host using the standard UNIX commands and utilities. The commands could be entered either in Latin or in Arabic and are executed by the LANGBOX-ARA shell command interpreter. The system responses are displayed in the language chosen by the user.

    Although set with a default language prior to login, a LANGBOX-ARA user can start multiple work sessions, (shell child processes), each with a different base language. He will be able to alternate languages within the same work session, at the command line, directory and file level, or when running a standard UNIX application (ex: text processing, spreadsheets, data base management, etc.).

    In addition to the bilingual UNIX user interface, LANGBOX-ARA provides a comprehensive bilingual software development environment for programmers. The programmer will be able, with or without the knowledge of the Arabic language, to develop with ease bilingual applications or to adapt, with minimal effort, current English software packages to run in a bilingual mode under the LANGBOX-ARA environment.

     Internationalization of Applications

    LANGBOX-ARA provides an enhanced environment for the internationalization of applications as compared with classical techniques.

    Usually, application programmers incorporate international character strings' manipulation, "context analysis" (automatic shape determination), and display processing within the application. Under LANGBOX-ARA, 8 bit clean character based application will run with no modification.

    The following table lists the benefits obtained by comparing a full LANGBOX-ARA bilingual work environment with a standard software internationalization approach:

      Operating system user interface. Not available.
      Language & I/O processing handled by LANGBOX-ARA with no application overhead. Language & I/O processing implemented in every application program, bigger overhead.
      English only software developer able to provide bilingual products. Sophisticated developers required with knowledge of the Arabic language particularities.
      Bilingual software environment is uniform. Potential inconsistency in software internationalization.
      Bilingual UNIX Mail easily implemented under LANGBOX-ARA. Major effort required.
      Communication and networking easily implemented under LANGBOX-ARA. Major effort required.

 Product Description

    LANGBOX-ARA supports exclusively the TTY interface, used under shell sessions under Dump terminals, telnet or rlogin connection to a UNIX operating system. It is composed of two packages:

  • The Runtime System
  • The Development System
  • The Runtime System must be installed prior to the installation of the Development System package. These packages include the standard UNIX V modules to which a set of LANGBOX-ARA specific facilities is added.

     The Runtime System

    a) The Shell

    LANGBOX-ARA includes two national language shells. They are differentiated by the first characters prefixing their label. Thus

  • ash and aksh are the Arabic Bourne shell and Korn shell.
  • esh and eksh are the English Bourne shell and Korn shell.
  • Araexec allows to launch any Operating shell.

  • Each is a special shell version created to provide.

  • An interpretation of the bilingual commands.
  • A full bilingual environment management.
  • Interface facilities with the kernel.
  • Messages in the national language.
  • When the LANGBOX-ARA shell is invoked

  • The environment variable LANG is assigned to the national language value (ex: "ar") and connects all commands to the messages in the respective language.
  • The keyboard of the logged-in terminal is reconfigured to the appropriate national setting. The terminal is bilingual. With a single keystroke, the keyboard is back to the original configuration. A set of keyboard stickers is supplied to help to differentiate the keys in the dual keyboard.
  • The shell prompt indicates the base language of the invoked shell.
  • The cursor is positioned at the rightmost position on the screen. Arabic characters are added, English characters are pushed on.
  • Each shell can be called from another language shell and achieves the same effect. Exiting from a shell is done via the traditional "control-d." The national language variables are created with a new shell and restored when the spawned sub-shell is exited.

    The main advantages of the LANGBOX-ARA shells are:

  • The user decides and selects his/her base language.
  • Each shell provides a bilingual work session in a bilingual environment.
  • Command messages (as well as those of the shell) are in the language of the session.

  • b) Commands and utilities

    There are two groups of commands and utilities supplied with LANGBOX-ARA.

    1) The UNIX-like Group:

    This is a set of executable modules that have the same calling sequence as their UNIX counter parts, except that they work in 8-bits and are bilingual.

    These commands are differentiated by their prefix "a".

    Example: aa2ps, avi, auemacs, alp...

    They also share a set of characteristics:

  • They have the same name irrespective of the session language (aed works in English under esh, in Arabic under ash).
  • The messages of these commands are in the selected national shell language. Many other UNIX commands can run under LANGBOX-ARA without modification.
  • 2) The LANGBOX-ARA specific group:

    This is a set of commands and utilities supplied with LANGBOX-ARA and aimed at servicing the bilingual community of users. They include:

  • Character management.
      display the character set on the terminal
      download Arabic character set on terminal
      download Arabic character set on printer
      convert a file to ASMO 449 codeset
  • Display processing and character shape management

      Arabic floating point symbol definition
      video line language attribute
      manage the space character
      select the Arabic screen display mode
      general LANGBOX-ARA function setup
      display the status of the Arabic environment
      enable context analysis
      force numeral to 7-bits for computation
      select the English screen display mode
      control the display of Arabic numerals
      select months names
      set neutral characters in the display processing
      disable context analysis
      control the display of Arabic numerals
      disable the diacritics management
      display the LANGBOX-ARA driver level release
      enable the diacritics management
      record numerals in their language
  • Terminals management
      Arabic terminal information compiler
      define the toggle key for the bilingual keyboard
      adjust the Arabic screen after a resizing action

     The Development System

    a) The LANGBOX-ARA commands:

    In addition to the standard development power of UNIX, LANGBOX-ARA provides a set of tools to develop bilingual applications. They include string management functions reconfigured to service the 8-bit character sets, messages extraction and handing tools, sorts and conversion functions, etc.

    The message extraction capabilities provided permit the separation of strings out of "C" program into files, and a formatter for these messages to simplify the subsequent translations.

    These tools are extremely powerful when "internationalization" of applications are envisaged.

    b) The LANGBOX-ARA function libraries

    These libraries include:

  • Character types.
  • Character transformation.
  • Date and calendar routines.
  • Regular expressions.
  • Sort.
  • Internationalization functions.
  • Bilingual applications can benefit by recompiling under LANGBOX-ARA as these libraries have the same calling sequence as their UNIX counterparts, thus generating object code capable of handling bilingual messages.

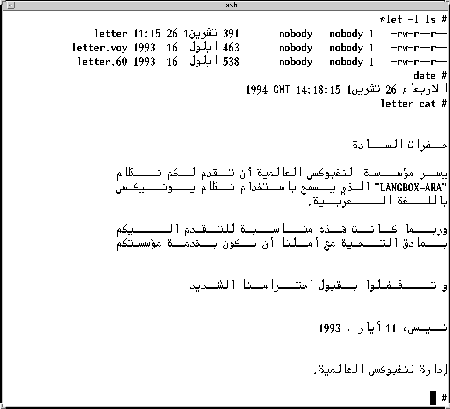

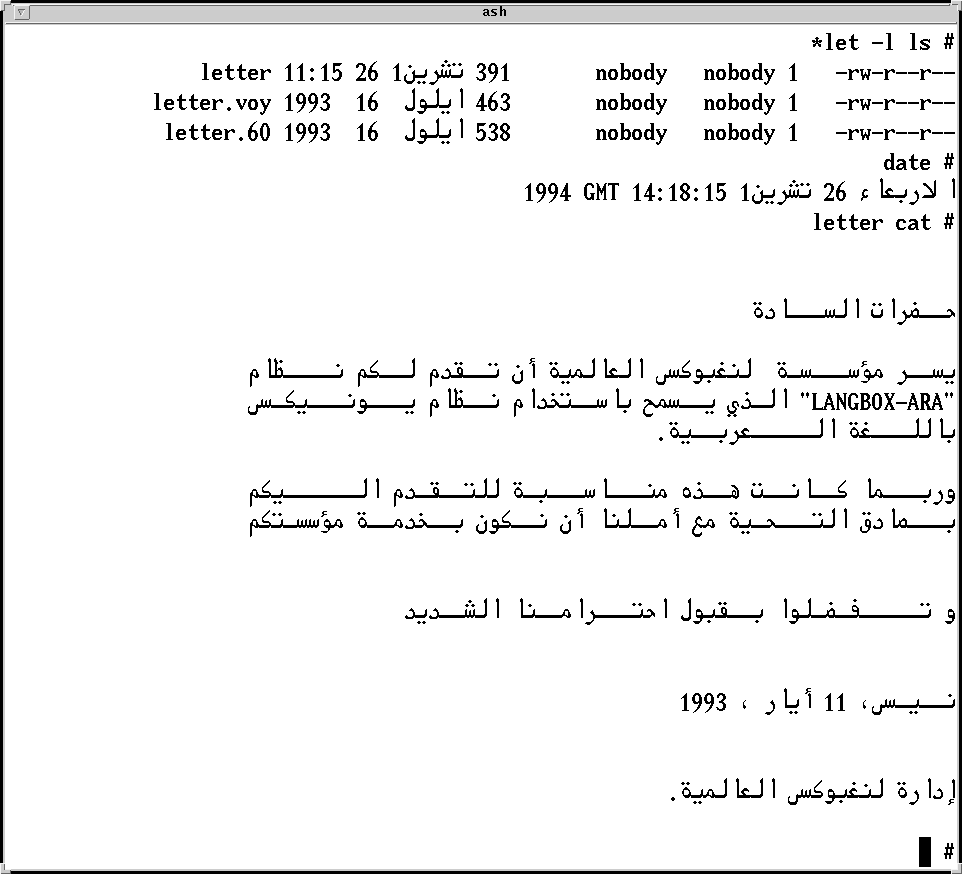

    Sample screen output of a Sun cmdtool window, running ash shell


    LANGBOX-ARA is adapted to the standards as set forth by AT&T's SVID and ISO.

    The standards adopted under LANGBOX-ARA are related to the following:

  • Character sets.
  • Standard display conventions.
  • Arabic level support standards.

  •  The Character Sets

    The Arabic characters are 8-bits wide and conform to the following standard:

  • ISO 8859-6 (ASMO 708)
  • ASMO 449+

  •  Display Conventions

    Characters will be displayed according to their language specific conventions. Latin characters will always appear separately, while Arabic characters will be contexted and displayed in their composite form.

    The display technique adopted depends on the base and current languages chosen by the user.

    When the environment is Latin, the initial cursor position is at the left of the line and characters are added to the right as they are entered. Arabic characters are inserted, and pushed to the right as they are entered.

    When the environment is Arabic, the reverse phenomenon occurs: the initial cursor position is at the right most position of the line, Arabic characters are added and English are inserted.

    Vocalization is fully supported on terminals capable of displaying 256 downloadable characters.

     Neutral Characters

    These characters are not context sensitive and do not, therefore, affect the shape of Arabic characters. Yet they have, in certain instances, opposite meaning in Arabic, due to the direction in which this language is written. Typical examples are:

    ( ) { } < > [ ] etc.

    A special command handles the meaning the user wants to assign to these special characters.


    The user is provided with a command allowing the display of numerals in Arabic shape (Latin shape) or Hindi shape (used in the Middle East). All known complications associated with this subject have been solved and incorporated in the package.

     Automatic Shape Determination (Shaping process)

    The standard rule is to display characters in the way calligraphy requires it. It was, however, found that this feature should be optional, since system users are frequently in debug work sessions and prefer to have their characters displayed in their original, base form. A pair of commands has been included to inhibit or restore Automatic Shape Determination.

     LANGBOX-ARA Level Support Standards

    LANGBOX-ARA capabilities will not change when installed on different hardware system configurations. The following standards have been adopted, and will be supported even if the hardware does not have the required features:

  • Full VT220 Terminal emulation support : The TERM environment variable is switched automatically and the application addresses a full VT220 pseudo terminal environment.
  • Keyboards, display and print devices will support the full ISO 8859-6 character set.
  • All I/O device drivers support diacritics (vocalization characters and some Arabic special characters). Display or print devices unable to output these characters are recognized by LANGBOX-ARA and receive only the character set they can handle.
  • Keyboards capable of returning diacritic codes but attached to display or print devices that do not have these features are supported, even if these characters are not echoed. The diacritic codes are accepted into the input stream for further processing.
  • Context Analysis is supported on all output devices.
  • It is further stressed here that LANGBOX-ARA generates and supports a Bilingual environment. LANGBOX-ARA allows users to set a SESSION LANGUAGE and to intersperse English and Arabic any time in the session, even within one command line.

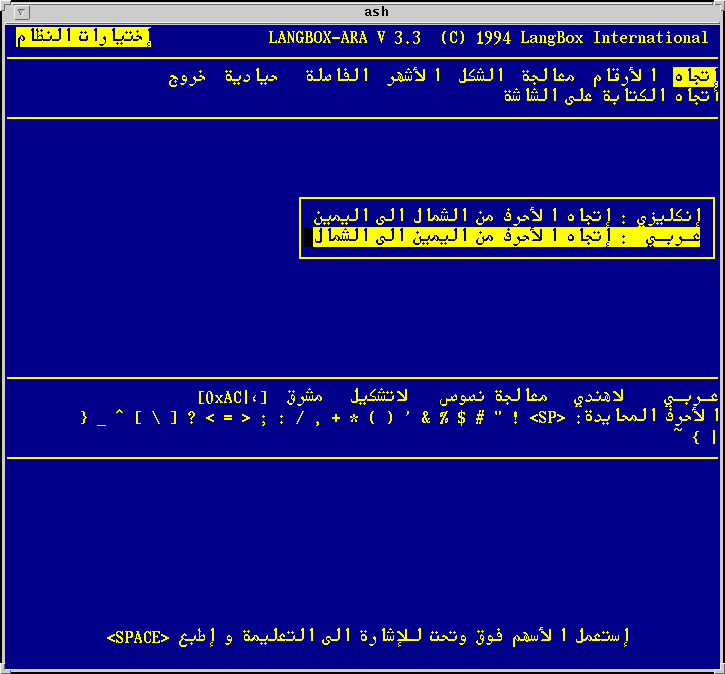

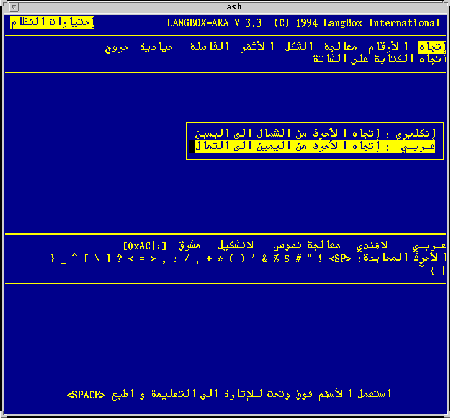

    Sample screen copy of a Curses(3X) based application running under LANGBOX-ARA

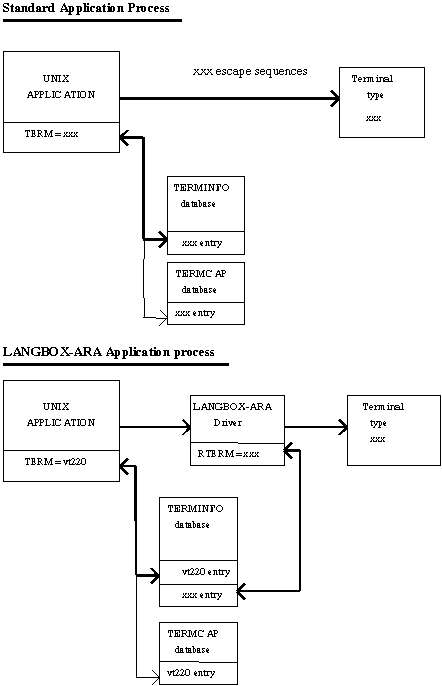

    This diagram shows how the LANGBOX-ARA kernel driver take controls of all TTY line I/O within the UNIX kernel and is able to perform exception process from the Application flow of character to the physical real terminal screen.

    In the same way, keyboard codes sent by the terminals are mapped into a dual logical keyboard management system and are sent back to the application.


    LANGBOX-ARA 3.3 is available on the following operating systems:

  • SCO XENIX 386: release 2.3 (AT and MCA versions).
  • SCO UNIX System V release 3.2 (AT and MCA versions).
  • INTERACTIVE 386/IX release 2.0.
  • IBM AIX PS/2 model 70 and 80 releases 1.1 and 1.2.
  • IBM AIX RISC System/6000 release 3.1.
  • CDC's EP/IX.
  • Data General's DG/UX.
  • Siemens' SINIX.
  • Solaris 2.3, 2.4, 2.5.1 and 2.6 on SPARC series.
  • Solaris X86 2.6 on PC platform
  • Silicon Graphics IRIX.

    is available on the following target machines:

  • PC/AT Architecture on the Intel 80386, 80486 and Pentium platforms.
  • IBM PS/2 model 60, 70 and 80.
  • IBM RISC System/6000 Family.
  • BULL DPX/2.
  • ALTOS 386 series 1000
  • SUN's SPARC series.
  • Control Data's Mips series.
  • Data General's AViiON.
  • Siemens' MX series.
  • Silicon Graphics INDY, INDIGO, CHALENGE and ONYX family.

    provides support for this set of terminals or compatible:

  • VGA console terminal (PC only)
  • DEC VT320
  • Wyse wy60
  • Opus 3n1
  • HP hp43

  • Terminal emulation programs under the X Window system and other windowing environments, such as CDE, Open Windows, DECwindows, Environment V, etc., are fully supported under LANGBOX-ARA version 3.3 in VT220 emulation..

    LANGBOX-ARA 3.3 provides support for this set of printers:

    • IBM 4201us (9 pin)
    • IBM 4201 (9 pin)
    • Epson lq1000 (24 pin)
    • Fujitsu dl3400 (24 pin)
    • HP deskjet 500+
    • HP laserjet (PCL)
    • DEC LA75+
    • Postscript
